드롭케이블 중간 접속 솔루션
드롭 케이블의 확장 및 케이블 단선 부위의 중간 접속 등을 위한 유지관리가 가능합니다.
Specifications
![](https://solmate.kr/wp-content/uploads/2023/09/광케이블-연결함체-1.jpg)
사 양
Model Type
Indoor
SOL-201, SOL-220, SOL-203
Outdoor
SOL-211
Cable Type
3 mm Round, 2x3 mm Flat, 2 mm, Flat(Fig-8)
Insertion Loss
< 0.1 dB
Return Loss
< 60 dB
Weight
2.7 g
Dimension
51.8(W) X 8.5(L) X 7.7(H) mm
98.6(W) X 26.5(L) X 12.3(H) mm
Operating Temperature
-40 ˚C to 75 ˚C
Core
Single core
Fast Connector
![](https://solmate.kr/wp-content/uploads/2023/09/광케이블-연결함체_img2-1-1.jpg)
SOLMate
![](https://solmate.kr/wp-content/uploads/2023/09/광케이블-연결함체_img1-1-1.jpg)

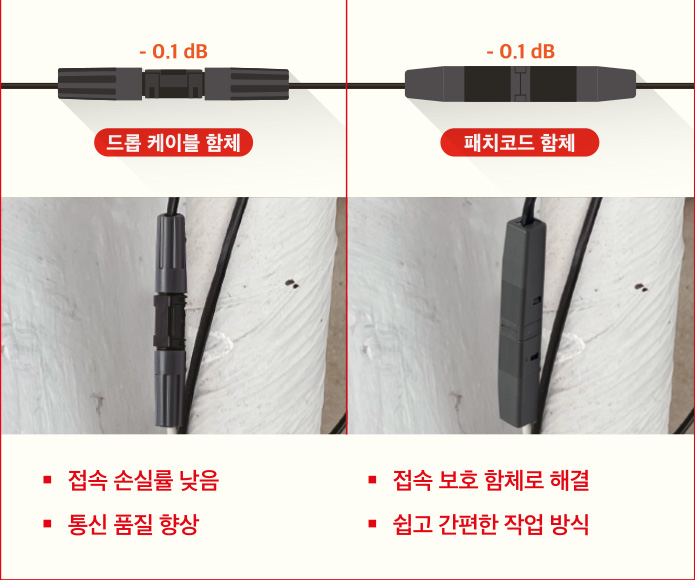

케이블 구부림 손실 방지 & 깔끔한 케이블 정리 가능
![](https://solmate.kr/wp-content/uploads/2023/09/광케이블-연결함체_img4-1.jpg)
![](https://solmate.kr/wp-content/uploads/2023/09/광케이블-연결함체_img3-1.jpg)
